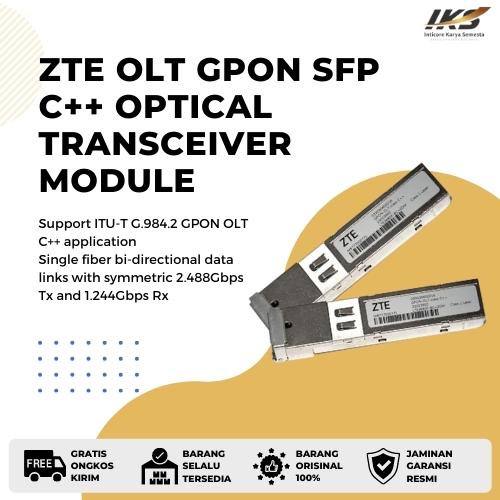

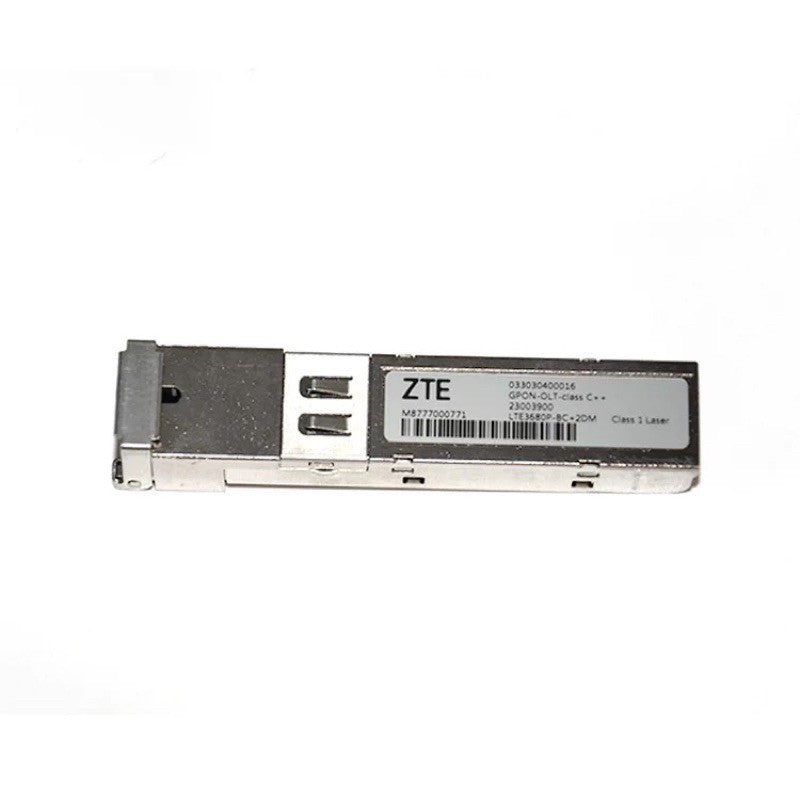

ZTE OLT GPON SFP C+ C++ C+++ Optical Transceiver Module
Rp 355.000,00
Rp 355.000,00
Rp 355.000,00
Couldn't load pickup availability
- This timepiece features a 34mm steel case paired with a high-quality steel bracelet.
- Showcases a distinctive white dial and is powered by a precise automatic winding movement.
- Designed with water resistance of up to 30m.
- We are Authorized Dealers, ensuring you receive a 5-year warranty directly from Omega.
- Worldwide Shipping.
- Multiple financing options available. Learn more.
- All Features...
Click here to contact one of our specialists.
Product description
Compatible with ZTE and Huawei
Support ITU-T G.984.2 GPON OLT C++ application
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature 0~70°C
RoHS6 compliance
* SFP MODULE GPON-OLT-CLASS-C++ GTGH GTGO
* TX OUTPUT POWER 6 ~ 7 dB
* SENSITIVITY -34 dB
* Transmission wavelength: 1490Tx/Rx1310 nm
* Working voltage: 3.3V
